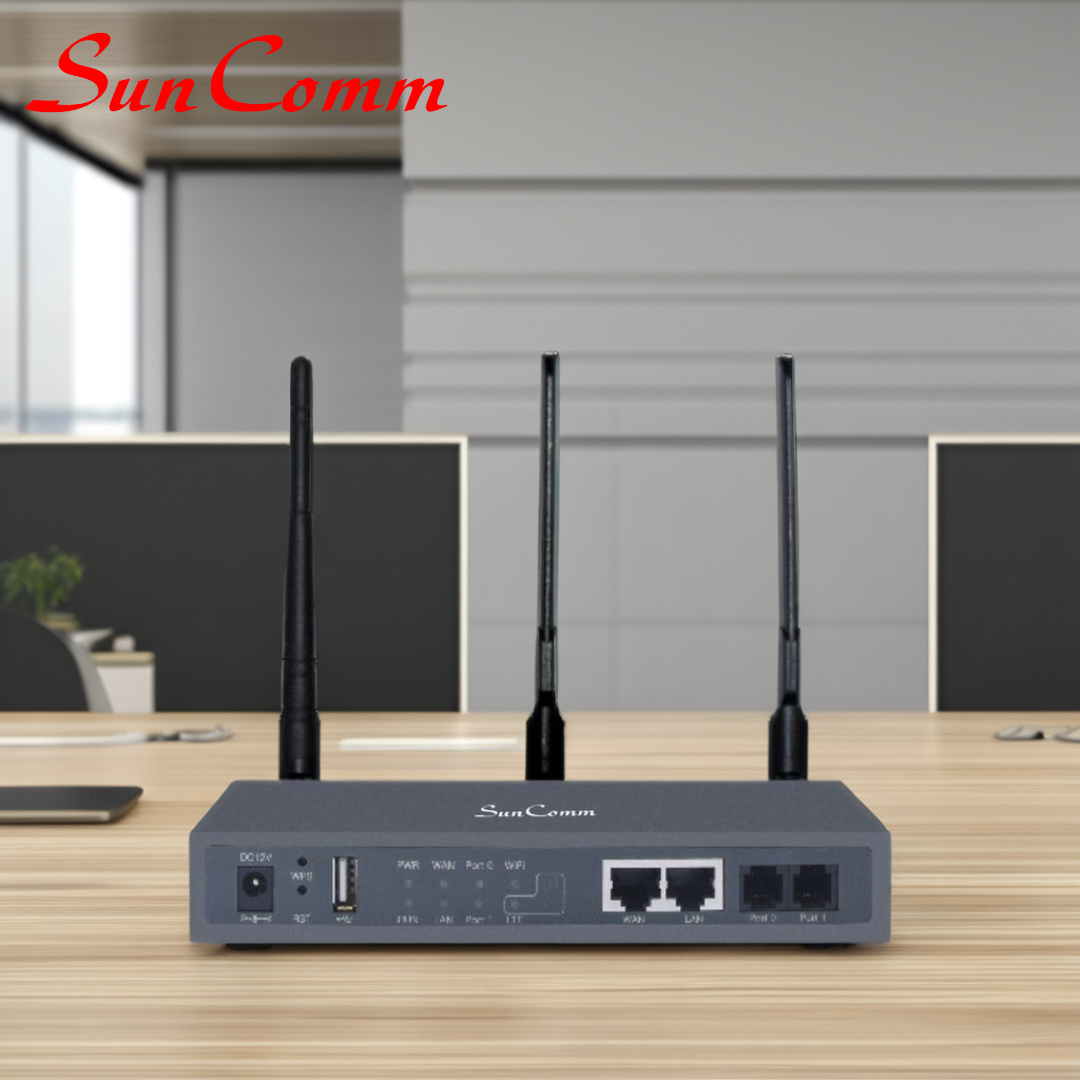

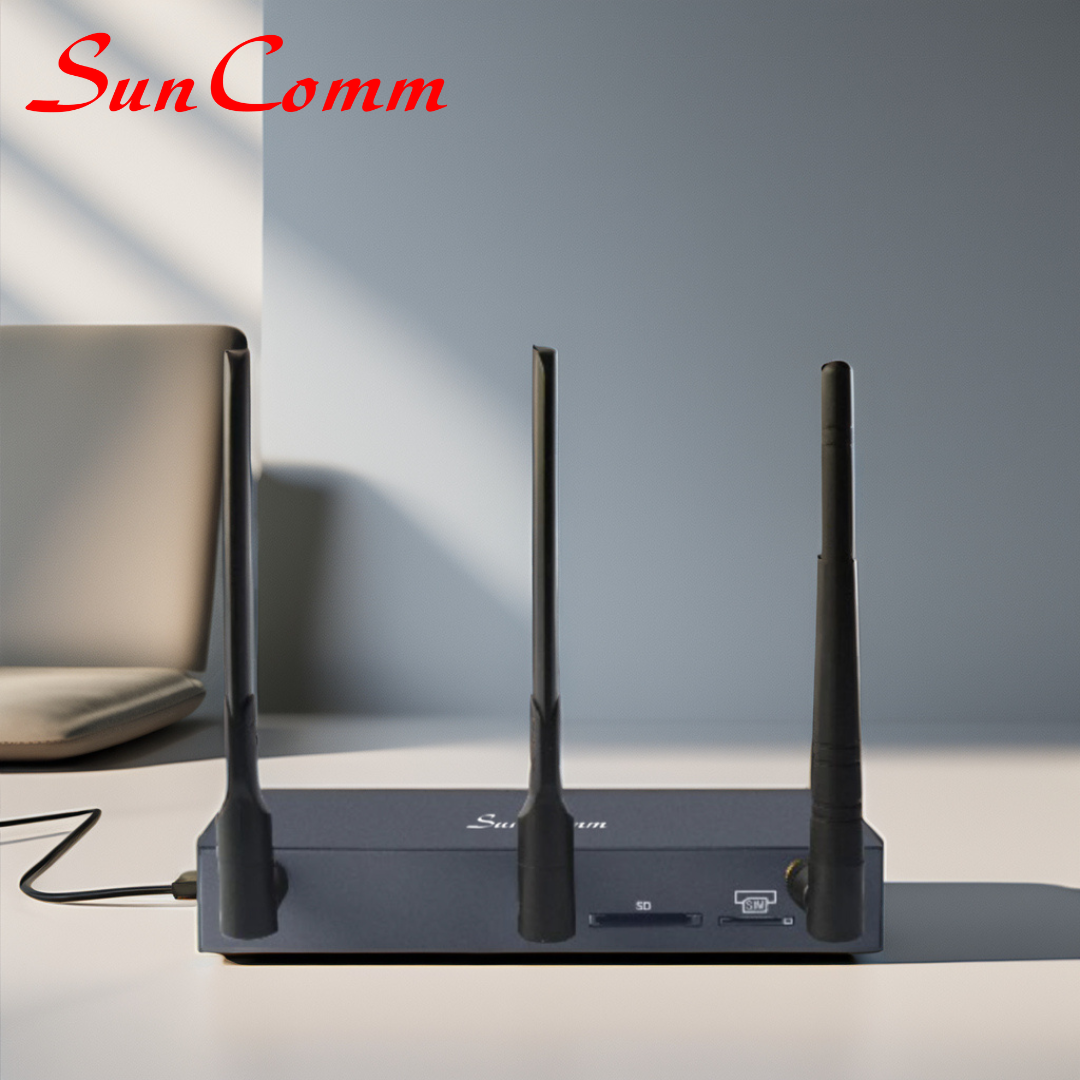

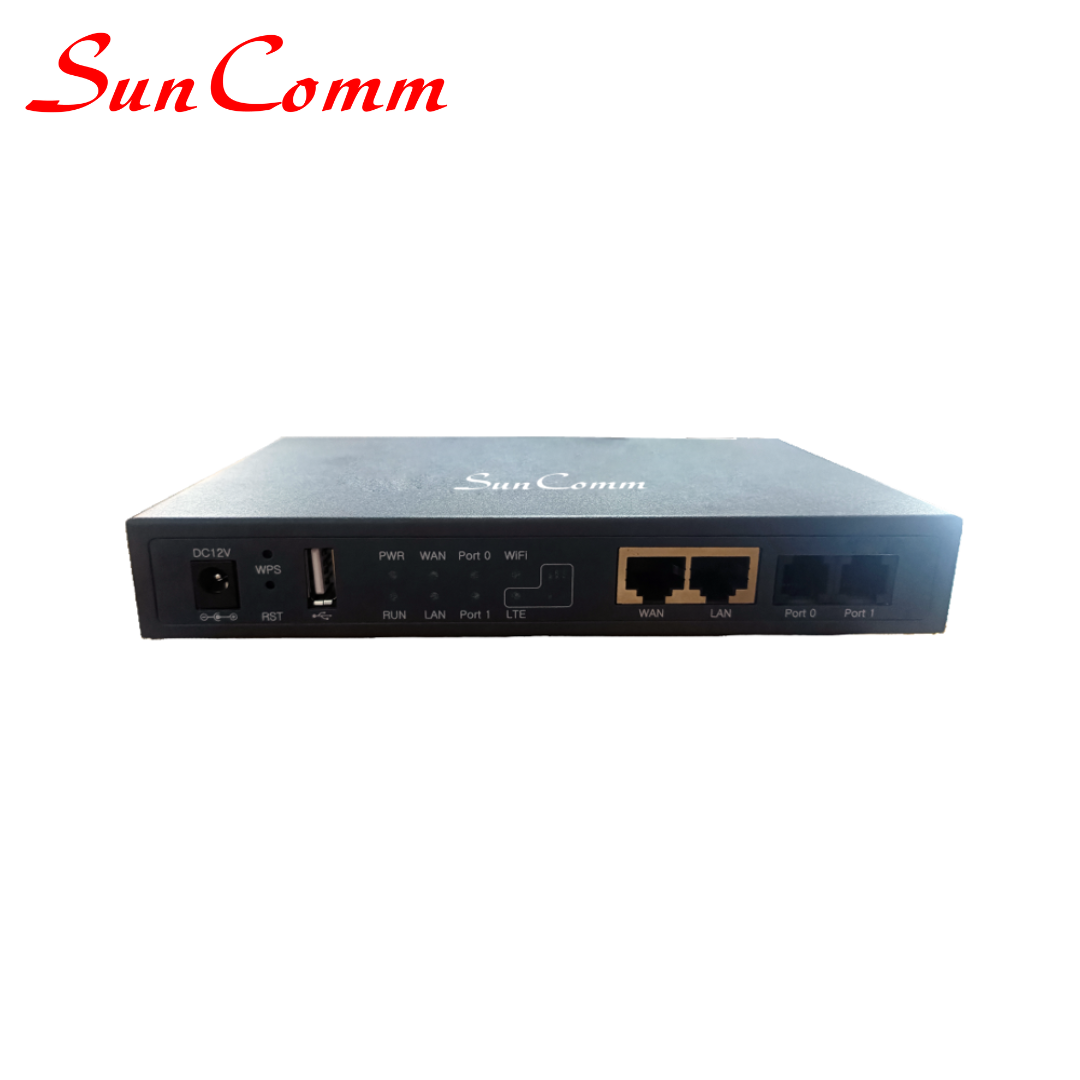

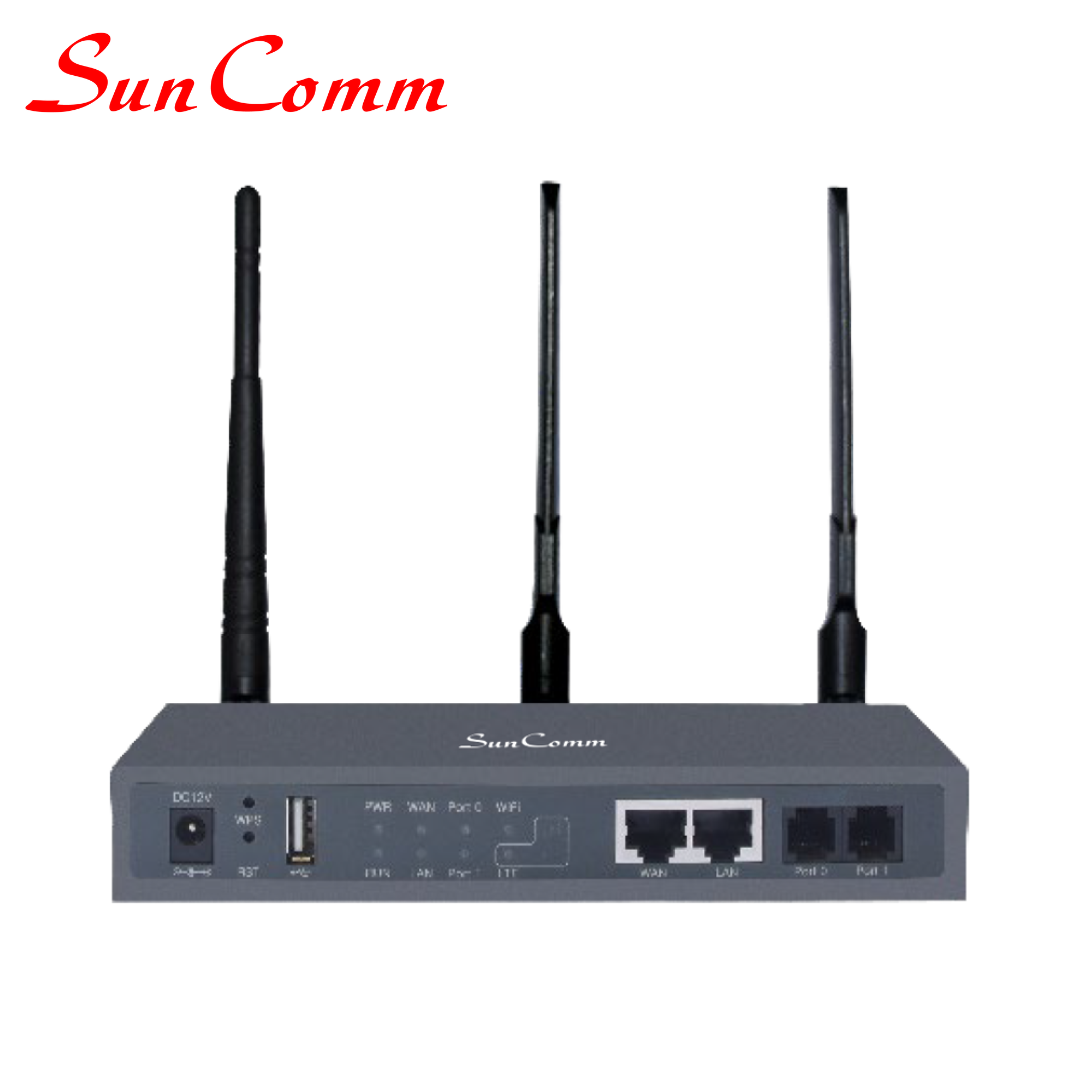

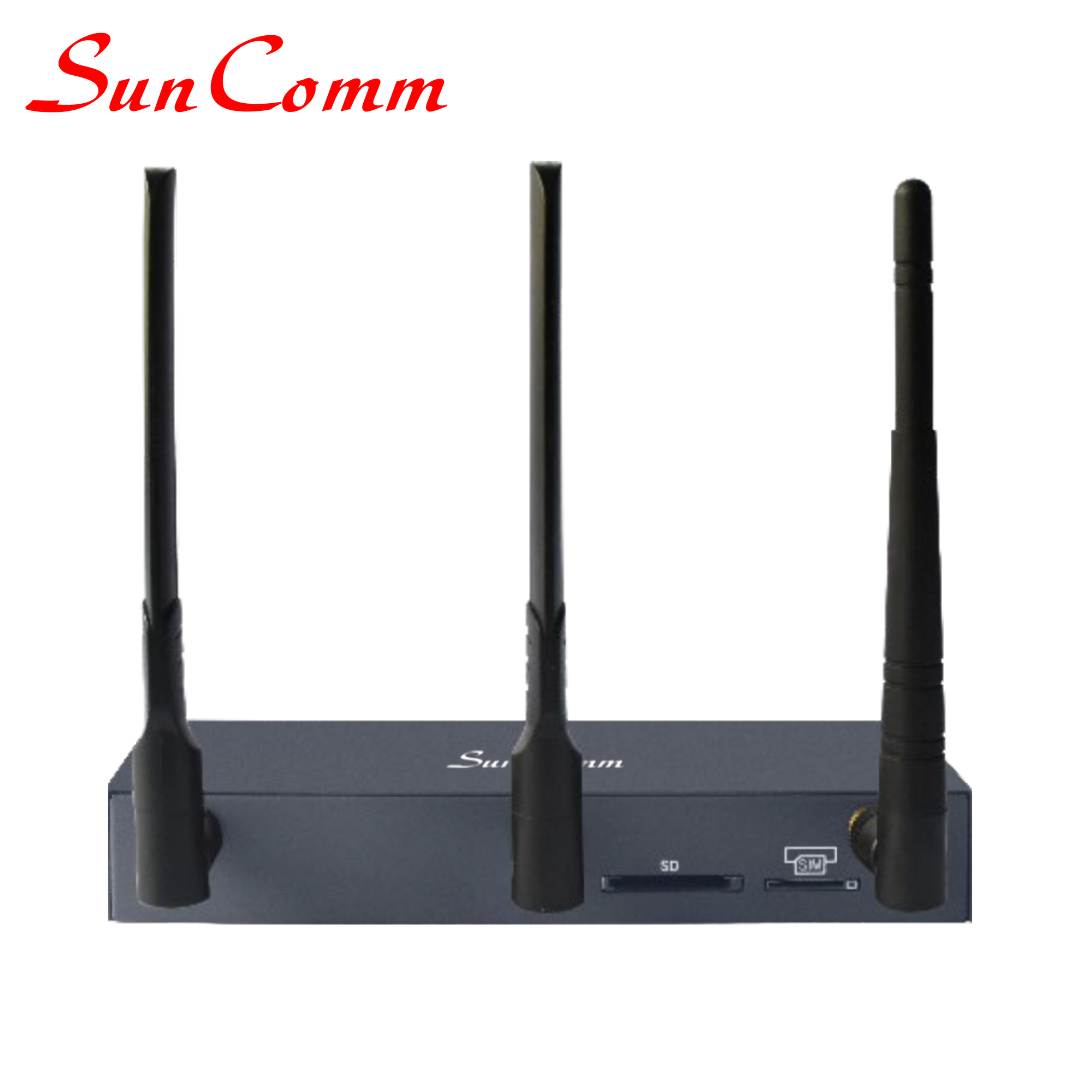

SC-211-WA4G 4G VoIP Gateway with FXS and FXO Ports and SIM Card

SC-211-WA4G 4G LTE VoIP Gateway with FXS FXO Ports and SIM Card | SunComm

Features:

• Modular design with selections of FXS/FXO module, GSM/LTE module
• Integration of multiple networks include FXO (CO), FXS, GSM/VoLTE and VoIP/SIP
• Open standard SIP, easy to integrate with different SIP endpoints
• Voice Mail and Integrated Auto-attendant, Voice Recording
• Easy to integrate Wi-Fi desk phone, Wi-Fi handsets with SIP through Wi-Fi hotspot
• Powerful performance, with up to 60 SIP Extensions and 15 concurrent calls
• User-friendly web interface, multiple management ways

Physical Interfaces:

• 1FXS/1FXO Hybrid or 2 FXS or 2 FXO
• 1 GSM or VoLTE Channel
• USB Interface: 1USB 2.0
• 2 10/100M, Base-T, RJ45
• Wi-Fi: 802.11 b/g/n, 2.4GHz,1T1R, 1 SD card slot
• Indicators: FXS, FXO, USB, SD, PWR/RUN

Voice Capabilities：

•  VoIP Protocols: SIP over UDP/TCP, RTP/STCP
•  Codecs: G.711a/μ law, G.723.1, G.729A/B
•  Silence Suppression
•  Comfort Noise Generator (CNG)
•  Voice Activity Detection (VAD)
•  Echo Cancellation: G.168
•  Dynamic Jitter Buffer
•  Adjustable Gain Control
•  Automatic Gain Control （AGC）
•  Call Progress Tones: Dial Tone, Ring Back Tone, Busy Tone
•  NAT: STUN/UPnP
•  DTMF: RFC2833/Signal/Inband
•  SIP TLS/SRTP/VOS encrypt

FXS/FXO：

• Connector: RJ-11
• Caller ID: DTMF, FSK ITU-T V.23 and FSK Bellcore
• Polarity Reversal
• Busy Tone Detection (FXO)

PBX Services：

• SIP Trunks and Extensions
• Fax over IP (T.38 and Pass-through)
• Call Forward/Call Waiting/ Call Hold/ Call Transfer/ Call Pickup/ Call Monitor/ Bargin in
• Hotline
• Do-not-disturb
• 3 Way Conference
• Ring Group/Route Group
• Call Queue
• Paging
• Caller/Called Number Manipulation
• Routing Based on Number
• Prefixes (Support Regex)
• Routing Based on Multi Source
• Failover Routing
• SMS Route
• Multi-level IVR
• Auto-attendant Function
• CDRS/Signal Trace Loop Back
• Voicemail/Voice Recording
• Up to 60 SIP Extensions
• Up to 15 Concurrent Calls
• Open NATS Cloud Service
• Event Report via HTTP/NATS
• Voicemail to Email

2G/VoLTE:

• 1 x SIM slot
• 1.8V, 3V SIM Interface
• SMS/USSD
• Antenna: SMA (Male) Connector, 3.0Db
• GSM or VoLTE on Demand
•

Frequency Bands:

• 2G: 850/900/1800/1900MHz (GSM)
• LTE(VoLTE and Data)
• Back forward Compatible with 2G/3G
• Type E Frequency Bands:
• FDD: B1/B3/B5/B7/B8/B20
• TDD: B38/B40/B41
• WCDMA: B1/B5/B8
• GSM: 900/1800MHz
• Type AU Frequency Bands:
• FDD: B1/B2/B3/B4/B5/B7/B8/B28
• TDD: B40
• WCDMA: B1/B2/B5/B28
• GSM: 850/900/1800/1900
• Notes: please choose dedicated VoLTE according to frequency of local operator

Network：

• Access Rules
• DHCP Client/ DHCP Server
• Port Forward, DMZ, Static Routes
• PPTP/ L2TP/Open VPN Server/Client

Maintenance：

• Web GUI Configuration
• Telnet Management
• Configuration Restore/Backup
• Multiple Languages Supported
• HTTP/TFTP/FTP Firmware Upgrade
• Auto Provision
• CDR Report and Export
• Syslog
• Ping and Tracert
• Traffic Statistics: TCP,UDP,RTP
• Network Capture
• NTP

Environmental:

• Power Supply: 12VDC, 1A;
• Power Consumption: 10W
• Operating Temperature. 0 ℃ ~ 40 ℃
• Storage Temperature: -20 ℃ ~80 ℃
• Humidity: 10%-90% Non-Condensing
• Dimensions (W/D/H): 178×98×28mm
• Unit Weight: 0.5kg
